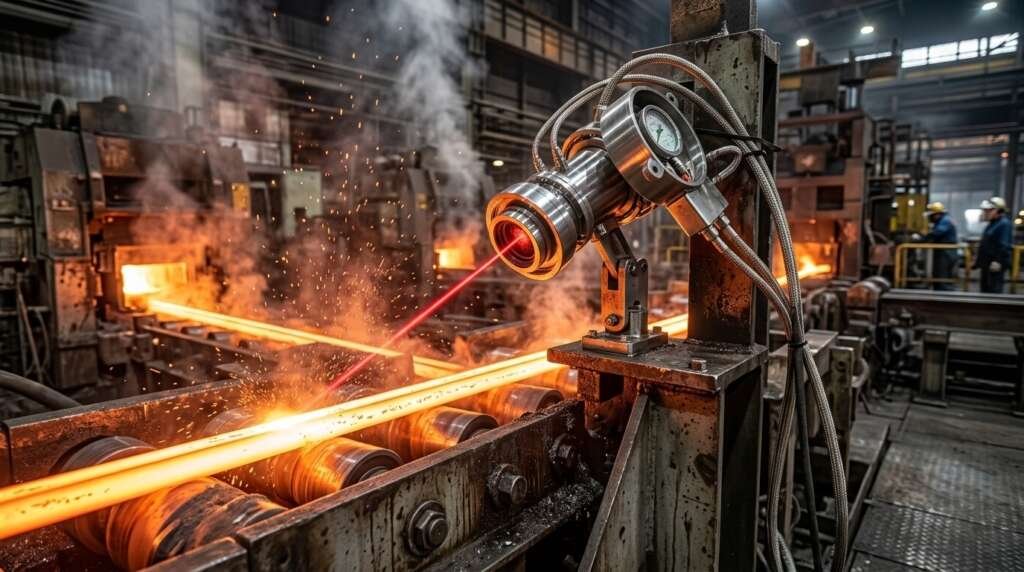

Online Infrared Non-Contact Pyrometers
Fixed online infrared pyrometers for continuous 24/7 in-line temperature monitoring in aggressive industrial process conditions.
Designed for continuous 24/7 in-line temperature monitoring in aggressive industrial plant conditions, ATHPL’s online infrared pyrometers feature high optical resolution, integrated video/laser alignment, and ruggedized protective housings.
Key Technical Specifications
Temperature Range: 50 °C to 3200 °C.
Optical Resolution: Up to 250:1.
Spot Size: Down to 0.6 mm (0.02 inch).
Response Time: Down to 2 ms.
Spectral Response: 1.0 μm to 14 μm with single- and two-colour models.
Ratio Pyrometry: Single-wavelength and two-wavelength options for harsh, smoke-filled atmospheric paths.
Blast furnaces, torpedo cars, continuous casters, hot strip mills, and other high-temperature metal processes.
Molten glass gobs, regenerator checkers, float glass lines, and hot rolling processes.
High-speed wire drawing, vacuum heat treatment furnaces, induction brazing, annealing, and related processes.
Kiln burning zones, calciner coolers, and secondary air ducts.
