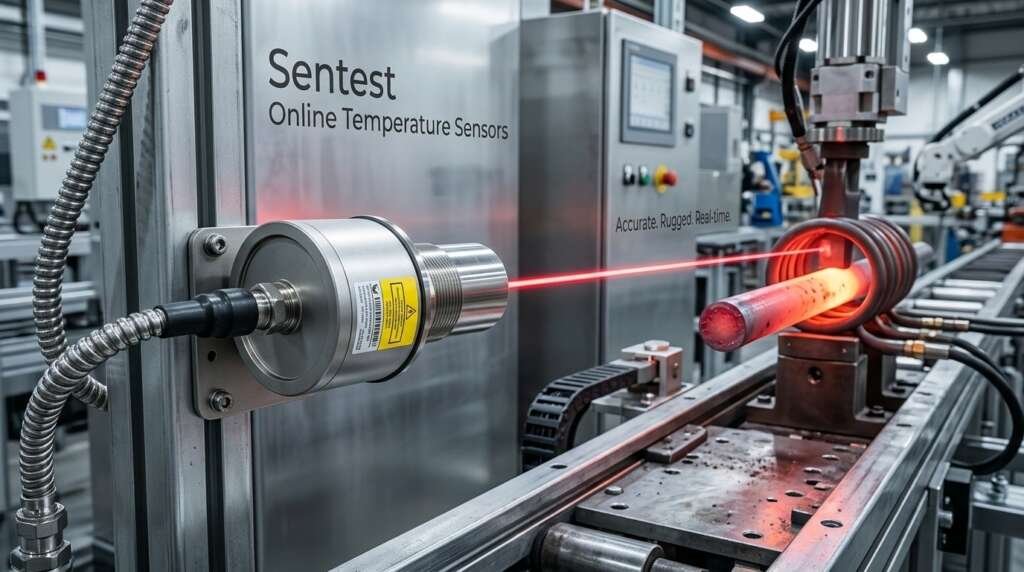

Sentest Online Temperature Sensors
Compact industrial non-contact pyrometers with coaxial red laser sighting, high optical resolution, and simultaneous analog and digital outputs.
A robust, compact industrial non-contact pyrometer engineered for harsh plant environments, incorporating coaxial red laser sighting for accurate target aiming, high optical resolution, and simultaneous analog and digital outputs.
Key Technical Specifications
Temperature Measurement Range: 0 °C to 1600 °C.
Operating Range: 60 °C to 1600 °C.
Optical Resolution: Up to 300:1.
Spot Size: Down to 1 mm.
Response Time: 5 ms.
Aiming & Output: Coaxial red laser aiming with 4–20 mA output.
Digital Communication: RS485 communications with simultaneous analog and digital outputs for PLC control and PC logging.
Housing: Rugged IP65 stainless steel construction.
Signal Processing: Adjustable signal processing.
STOnline Software: Parameter programming, real-time graphical display, and data logging.
Customization: Tailor-made accessories, customized software, water-cooling jacket, and air-purge collar for demanding installations.
Up to 300:1 optical resolution with measurement spots down to 1 mm.
Coaxial red laser sighting enables accurate target aiming in industrial environments.
4–20 mA and RS485 provide simultaneous PLC control and PC data logging.
IP65 stainless steel housing with cooling jackets and air-purge accessories available.
